Mechanical Specifications
| Rated Maximum Power | 505W |
| Maximum Efficiency | 21.1%
|
| Junction Box | IP68 |

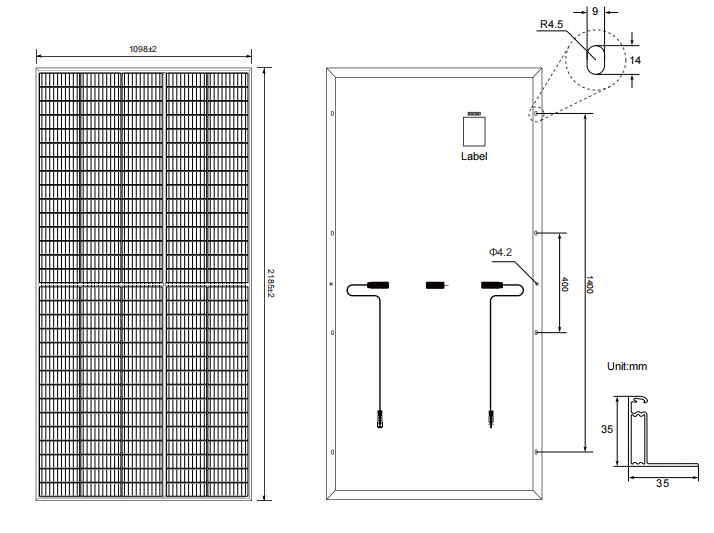

| External Dimensions | 2185x1098x35mm |
| Weight | 26.5kg |
| Solar Cells | Mono crystalline 210mm (5x30pcs) |

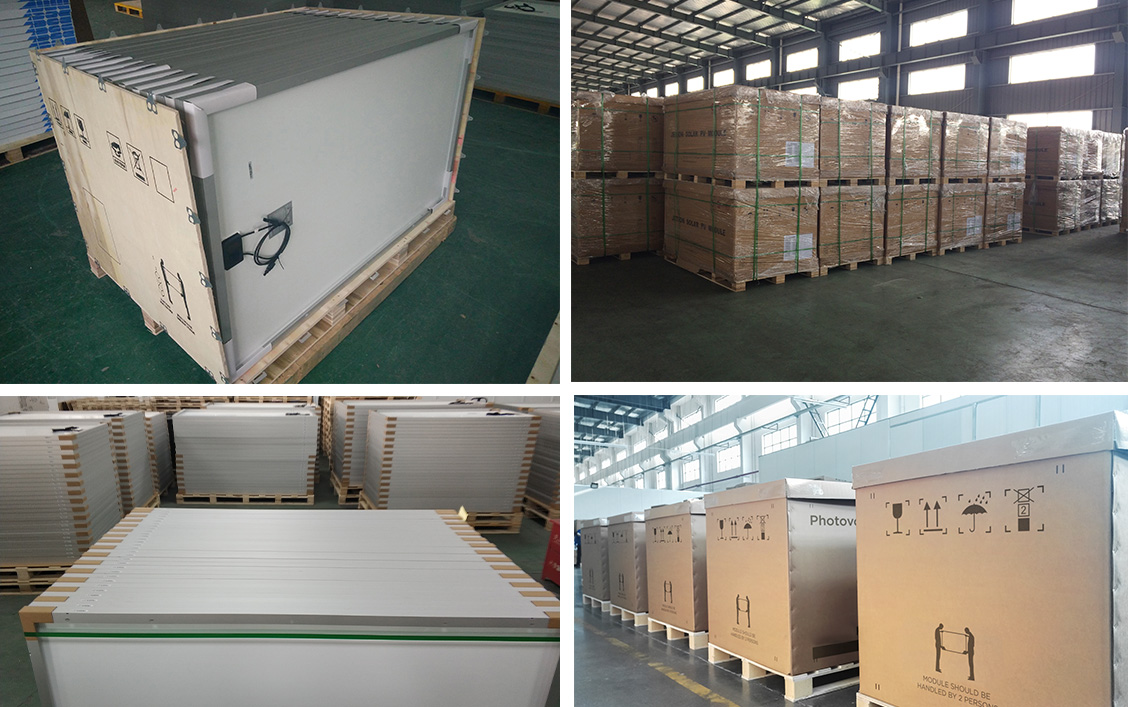

Packing Configuration
| 2185x1098x35mm |
| Container | 40’HQ |
| Pieces per Pallet | 31 |
| Pallets per Container | 20 |
| Pieces per Container | 620 |
