Mechanical Specifications
| Rated Maximum Power | 450W |
| Maximum Efficiency | 20.7%
|
| Junction Box | IP68 |

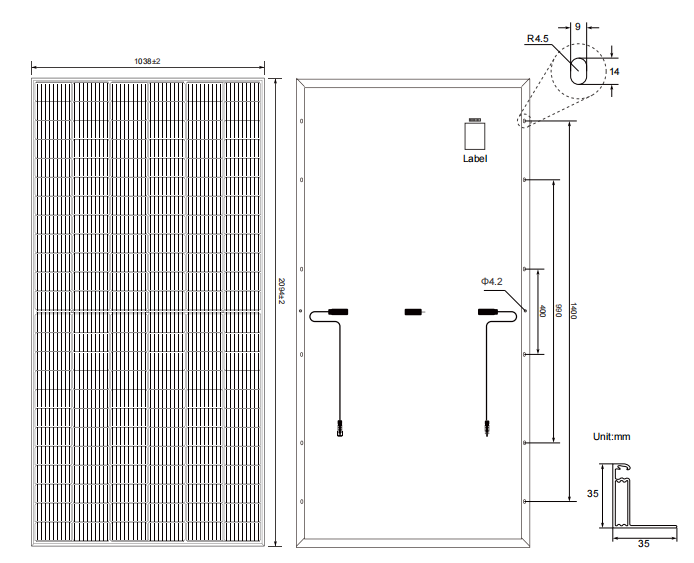

| External Dimensions | 2094x1038x35mm |
| Weight | 23.3kg |
| Solar Cells | Mono crystalline 166mm (2x72pcs) |

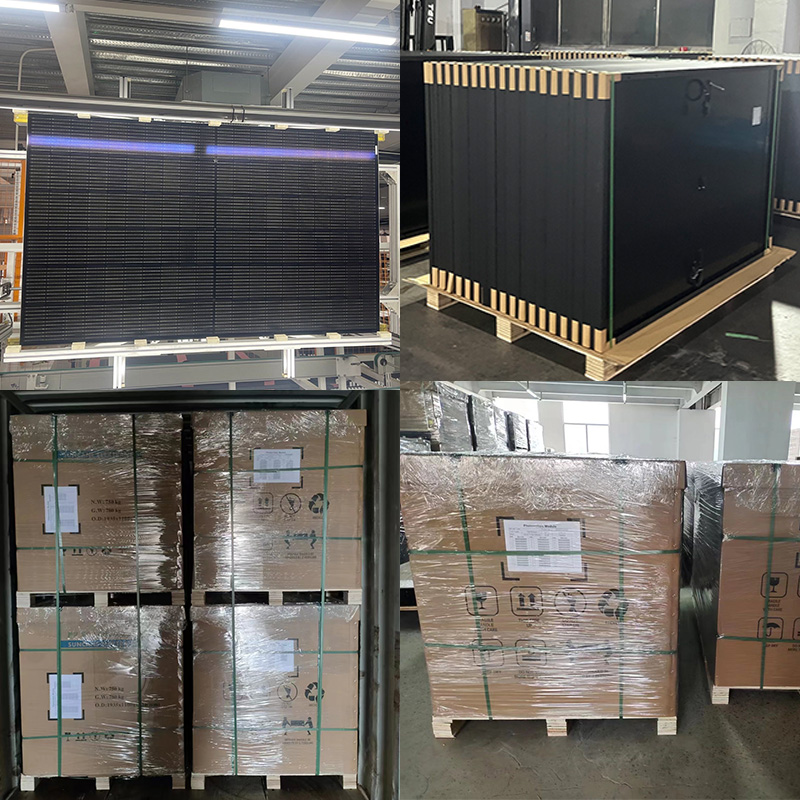

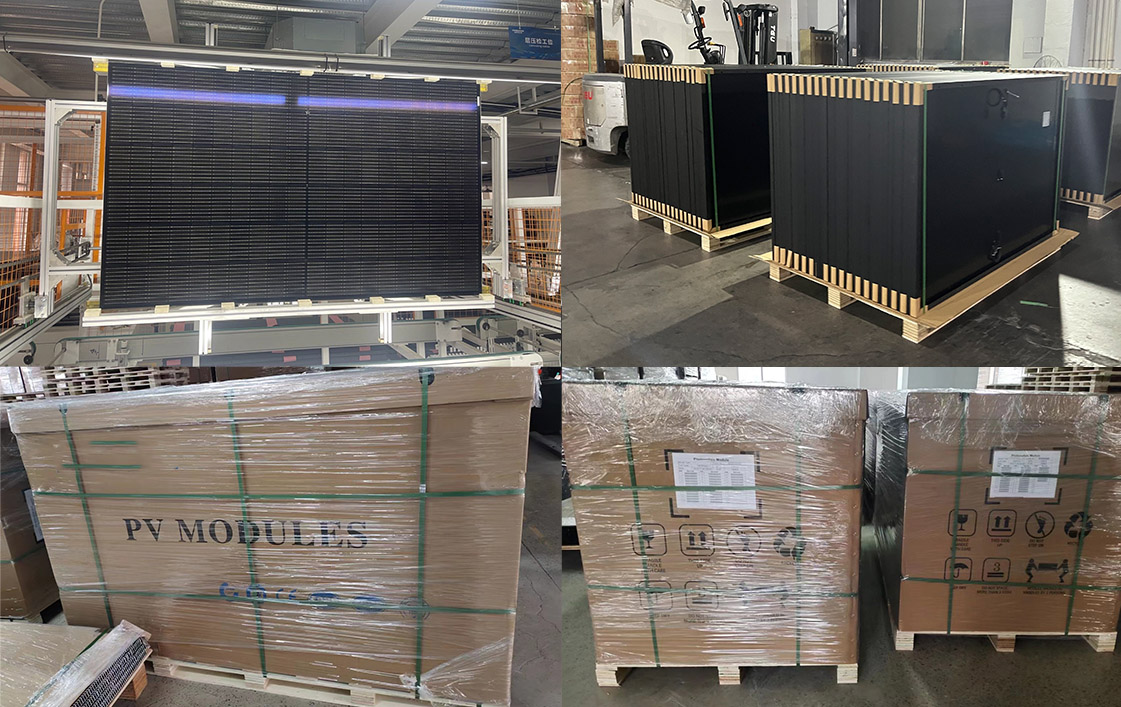

Packing Configuration
| 2094x1038x35mm |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 33 | 33 |
| Pallets per Container | 5 | 22 |
| Pieces per Container | 165 | 726 |
