Mechanical Specifications

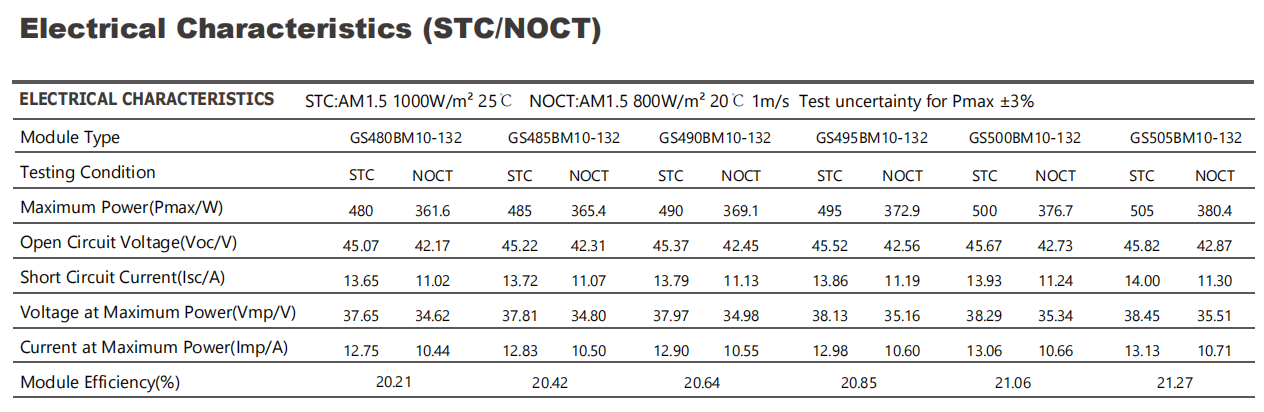

| Rated Maximum Power | 505W |
| Maximum Efficiency | 21.27%
|
| Junction Box | IP68 |

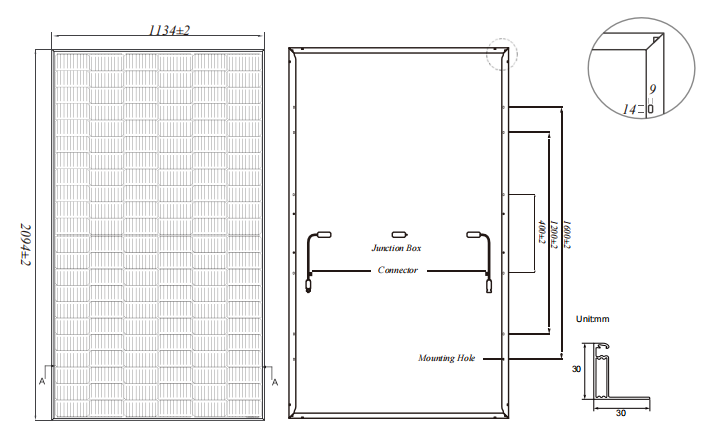

| External Dimensions | 2094x1134x35mm |
| Weight | 26kg |

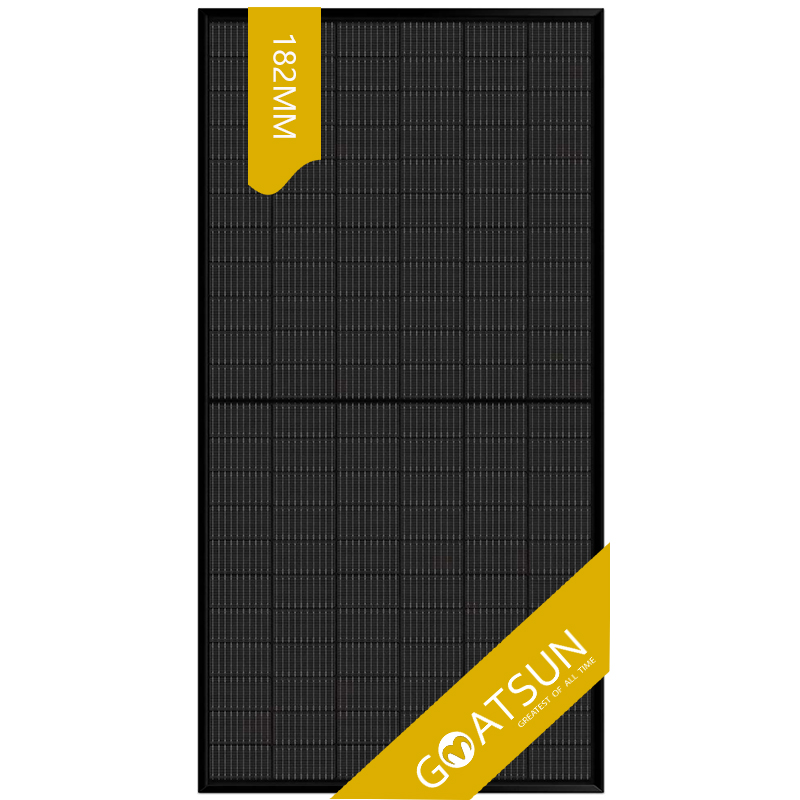

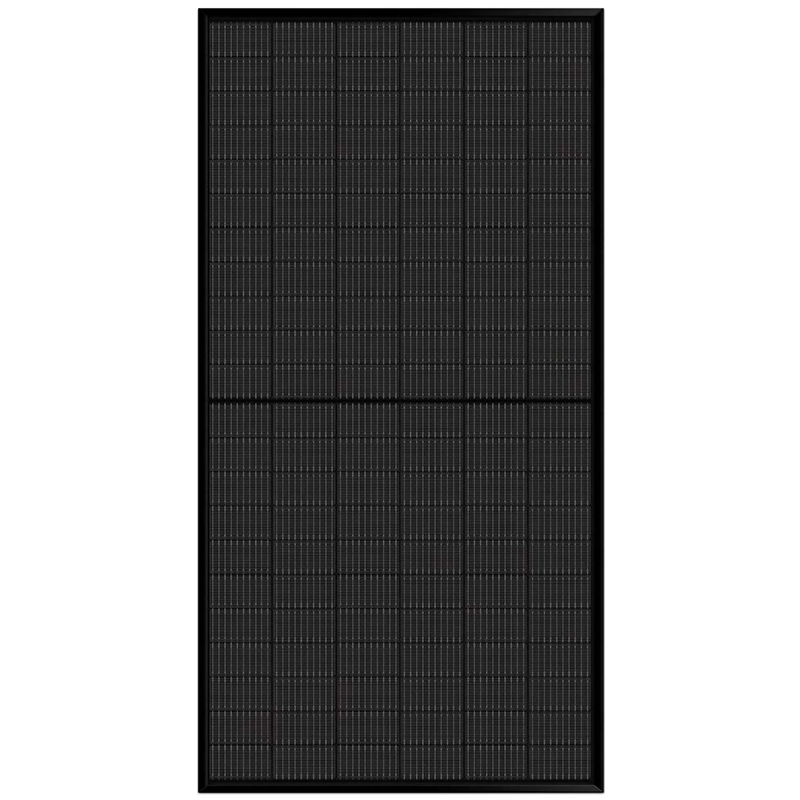

| Solar Cells | Mono crystalline 182mm (6x22pcs) |

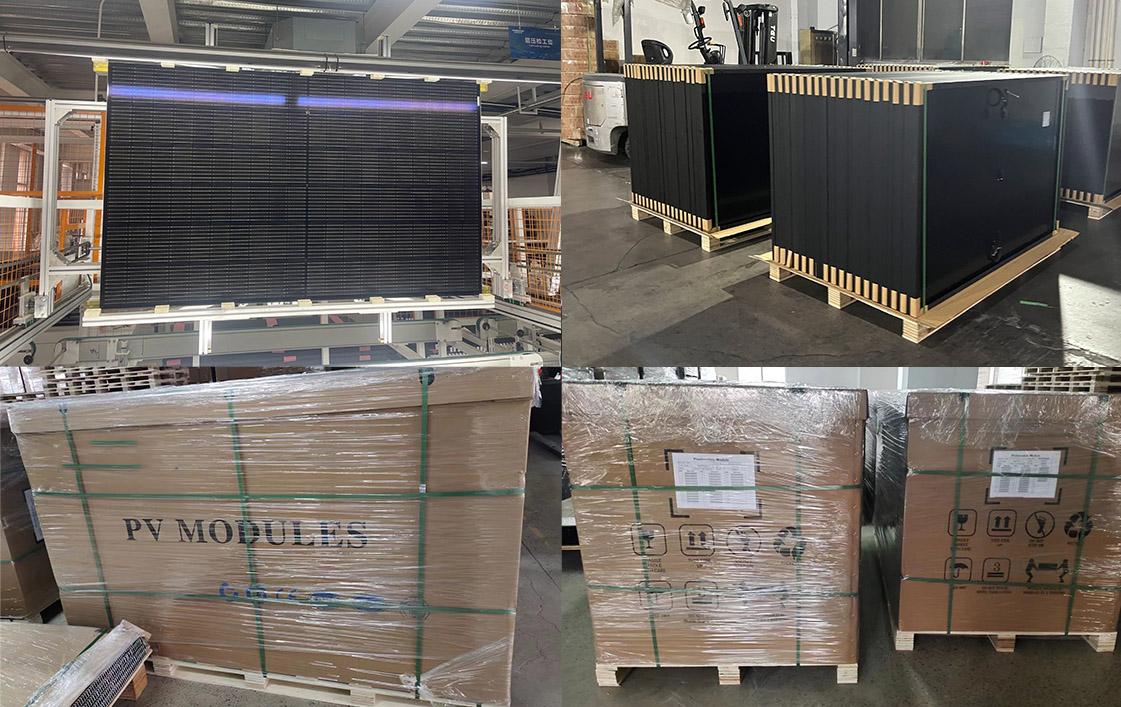

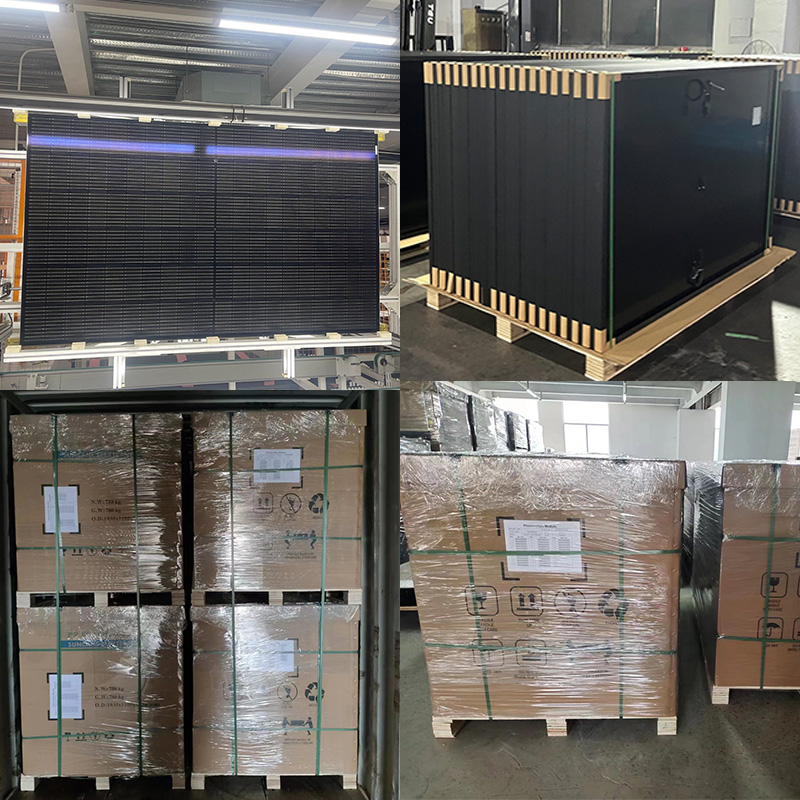

Packing Configuration
| 2094x1134x35mm |
| Container | 40’HQ |
| Pieces per Pallet | 31 |
| Pallets per Container | 22 |
| Pieces per Container | 682 |
