Mechanical Specifications
| Rated Maximum Power | 460W |
| Maximum Efficiency | 21.1%
|
| Junction Box | IP68 |

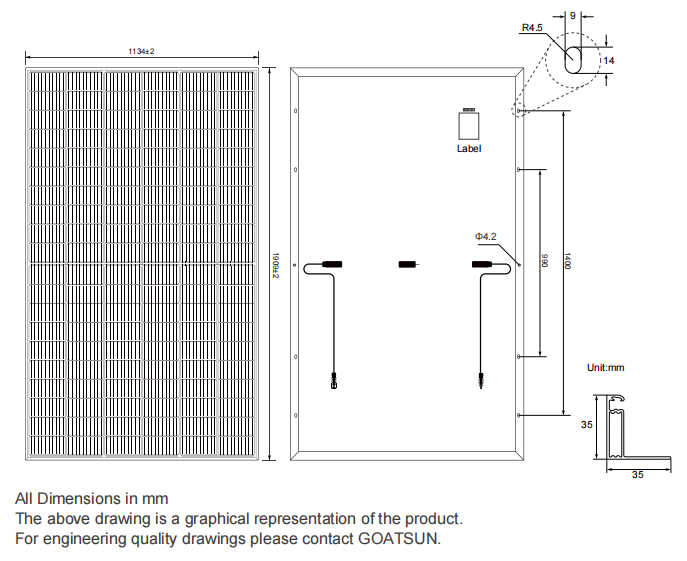

| External Dimensions | 1909x1134x35mm |
| Weight | 24kg |
| Solar Cells | Mono crystalline 166mm (2x60pcs) |

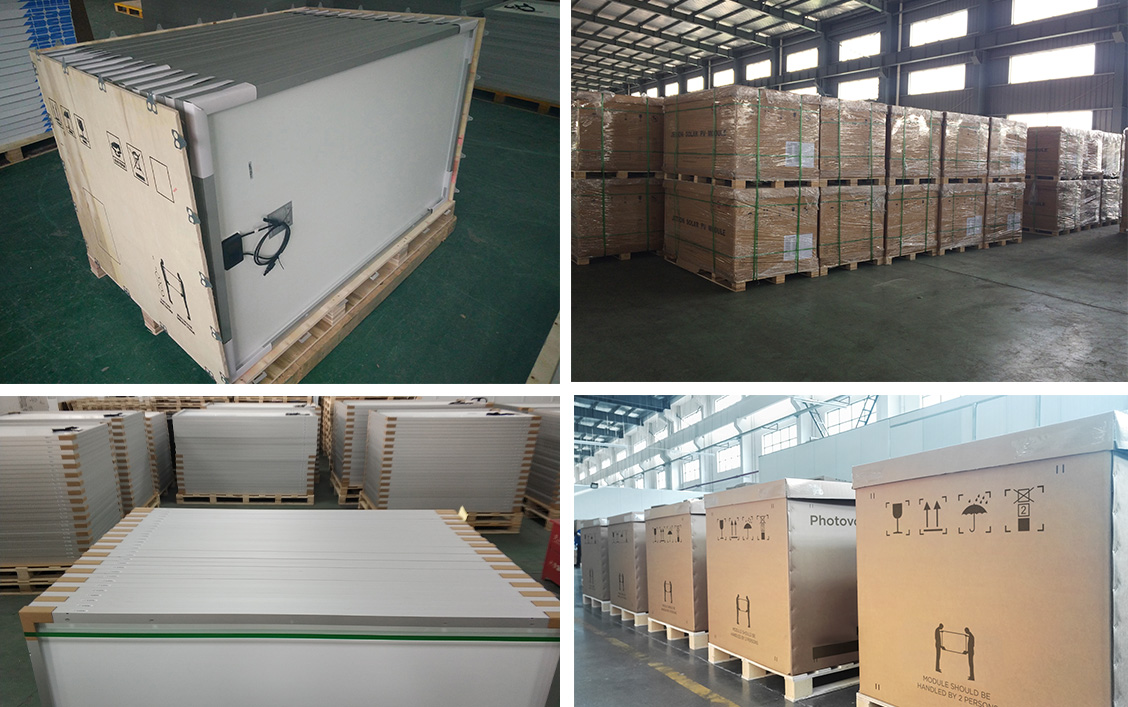

Packing Configuration
| 1909x1134x35mm |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 5 | 24 |
| Pieces per Container | 155 | 744 |
