Mechanical Specifications
| Rated Maximum Power | 505W |
| Maximum Efficiency | 21.3%
|
| Junction Box | IP68 |

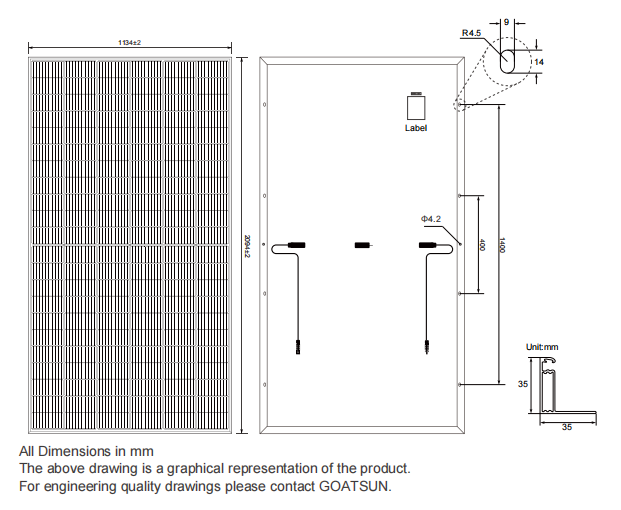

| External Dimensions | 2094x1134x35mm |
| Weight | 26.3kg |
| Solar Cells | Mono crystalline 166mm (2x66pcs) |
Packing Configuration
| 2094x1134x35mm |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 5 | 21 |
| Pieces per Container | 155 | 682 |
