Mechanical Specifications
| Rated Maximum Power | 550W |
| Maximum Efficiency | 21.3%
|
| Junction Box | IP68 |
| External Dimensions | 2278x1134x30mm |
| Weight | 28.5kg |
| Solar Cells | Mono crystalline 166mm (2x72pcs) |

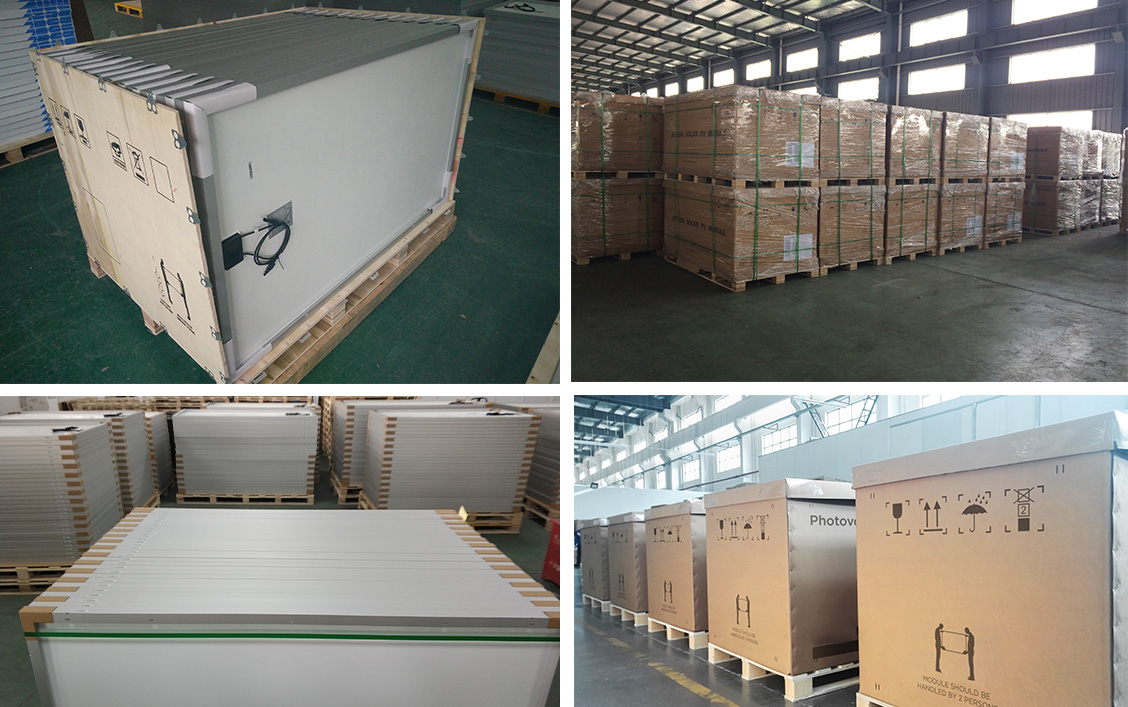

Packing Configuration
| 2278x1134x35mm |
| Container | 20’GP | 40’HQ |
| Pieces per Pallet | 31 | 31 |
| Pallets per Container | 4 | 20 |
| Pieces per Container | 124 | 620
|
